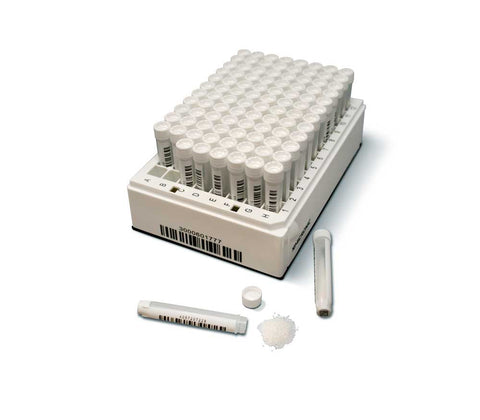

ZR-96 BashingBead Lysis Rack (Barcoded)
| Cat # | Name | Size | Price | Quantity |
|---|
Highlights
- Barcoded for rapid accessioning and sample tracking
- Superior leak resistance prevents cross contamination
- Validated for complete lysis of tough-to-lyse bacteria & fungi
Documents
Product Description
Technical Specifications
| Barcode | All tubes feature a laser-etched 2D barcode and optional 1D side barcode for convenient sample tracking. |
|---|---|
| Closure Type | Triple screw thread with septum provides a resistant barrier to prevent cross contamination. |
| Color | Clear with or without barcode |
| Fill | Each 1.0 mL tube contains a blend of ZR BashingBeads for optimal sample lysis |
| For Use With (Application) | Microbial lysis during nucleic acid purification |
| L x W x H | 128.0mm x 85.0mm x 57.0mm |
| zAdditional Processing Equipment | Bead beater/bead homogenizer and optional screw cap capper/decapper |
Resources
Q1: What kits and products is this compatible with?
| Throughput | Nucleic Acid Type | Kit Name | Cat. # |
|---|---|---|---|
| Automated | DNA | ZymoBIOMICS 96 MagBead DNA Kit | D4306 |
| RNA | ZymoBIOMICS MagBead RNA | R2137 | |
| DNA/RNA | ZymoBIOMICS MagBead DNA/RNA | R2135 | |
| Manual | DNA | ZymoBIOMICS 96 DNA Kit | D4307 |
| RNA | ZymoBIOMICS RNA Miniprep Kit | R2001 | |
| DNA/RNA | ZymoBIOMICS DNA/RNA Miniprep Kit | R2002 |
Q2: What is the recommended final volume?
The recommended final volume for bead beating is 800 µL.
Q3: What are the dimensions of the Lysis Rack with the Lid and Base Plate attached?
128.0mm x 85.0mm x 57.0mm. Ensure that the buckets on the rotor have sufficient clearance to accommodate this combo.
Q4: Is there additional equipment required for processing?
- For mechanical bead beating:
- A Bead beater/bead homogenizer that accommodates Deep Well(96) Plate(s):(L x W x H) 128.0mm x 85.0mm x 57.0mm.
- A stabilizing snap-on Baseplate is included to immobilize tubes during the bead beating process so that the rack lid can remain attached.
- For Capping/Decapping:
- Automated screw cap capper/decapper, such as the 96-channel Micronic 96 Screw Cap Recapper CS700 or semi-automated (8-channel) Cap Recapper CS500. A Screwdriver tool (Cat. No. 3DP-1004) is included for manual de-capping.
Q5: Can this be used directly with liquid handling robots? Do you have custom labware designs for this for Hamilton/Tecan/etc.?
Yes, this rack follows ANSI/SLAS footprint specifications, ensuring that it is compatible with all major automation technologies. Our extraction kit protocols include an “automation guide” for users to script the protocol themselves and our technical support staff are available for any automation help, troubleshooting, and advice. Please do not hesitate to contact us at automation@zymoresearch.com.
Q6: What type of beads are you using?
High density silica beads
Q7: What is the temperature rating of the plastic?
Vapor phase Liquid Nitrogen to +140ºC; Made from Polycarbonate.
